OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HD Non-Sealed

View Cart

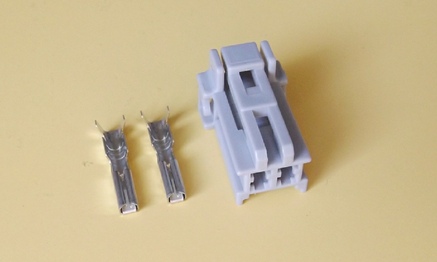

2 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-2  Female   $2.25 each



Sumitomo part number 6098-0239


Applications include

Honda Crank sensor connector

Service Check connector


Sumitomo - HD Non-Sealed Connectors.

These Connectors are used highly on Honda car and Motorcycles.

All connectors Come complete with male, female terminals.

More Terminals, seals, and plugs available at the bottom of the page

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me Here

HD 090 Series
Extra Female Terminals for HM 090 non-Sealed
8240-4422 Japan   8240-4412
Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

$0.16 each   HM Female







For HM, MT, HD, DS, TNS series 090 connectors
This terminal us used for some HW 090 sealed connectors that use a single seal on the back side.
Add to Cart Add to Cart
Extra Male Terminals for HD 090 non-Sealed
8230-4282 Japan   8230-4272
Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

$0.15 each   HM Male





For HM, MT, HD, DS series 090 connectors
Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

2 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-2   Male      $2.05 each



Sumitomo part number 6098-0240


Applications include

Honda Crank sensor connector

Service Check connector

Add to Cart

HD Mounting Clip






    HD Tree Clip       $0.65 each

Add to Cart

4 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-4  Female   $2.35 each



Sumitomo part number 6098-0243


Add to Cart

4 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals

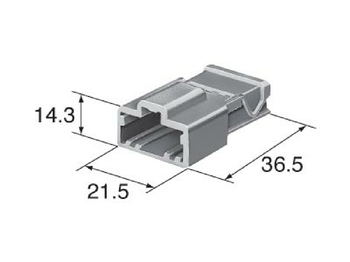

     HD 090-4   Male      $2.75 each



Sumitomo part number 6098-0244


Add to Cart

6 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-6  Female   $2.25 each



Sumitomo part number 6098-0245


Applications include

Honda Taillight connector

Honda interior connector

Add to Cart

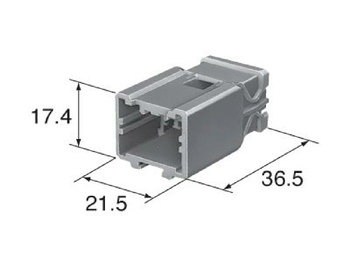

6 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-6   Male      $3.75 each



Sumitomo part number 6098-0246


Applications include

Honda Taillight connector

Honda interior connector

Add to Cart

Economy  - Open Barrel Crimp Tool  For 14 - 24 AWG - Works well with these Terminals

Made in USA - NOT recommended for 4mm Bullets and 250 AMP terminals



I have used this and with a little practice you can get factory quality crimps with it. This tool does the wire crimp, then the insulation seal crimp in 2 steps.

Great for Amphenol Terminals, and Sumitomo 040 and 090 terminals.

You can do  12 AWG, But technically the tool is recommended for 14 - 24 AWG.



                                                                 $31.55 each   ECT39

Add to Cart
This tool works well for these terminals.
Using die D for the conductor crimp and die B or C for the insulation

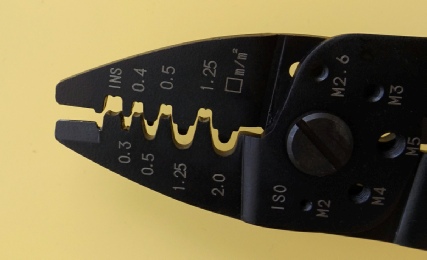

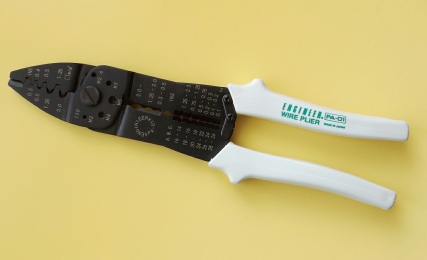

Crimp Tool for 110 and  090-Non Sealed Terminals

Open Barrel Crimp Tool  for Non Sealed 110, 090 and the HE-050 Terminals

This tool works really well for non sealed terminals designed for ( 1.25mm - .3mm )16 - 22  AWG wire and smaller.

Works great for male and female 110 terminals.


This WILL NOT DO my 3.9mm Bullet terminals, 250, 312 spade terminals, or Terminals  designed for 14 gauge or larger wire.





                                                                                                                         $44.95 each   PA-01

Add to Cart

Pressmaster KRB-0560 - Made in Sweden  by Pressmaster

Open Barrel Terminal Crimp Tool For 10 - 20 AWG



By far the best Crimp tool Available!! Built to the Highest Quality Standards!

Good for 50,000 crimps, If you do a lot of crimping with these type terminals,

this is the tool to have.


This crimp tool works better than anything I have ever used for .250-.312 - 3.5mm

and 4mm bullet terminals.  Works great for some non-sealed .090,  .110, and .187

Also sold by Apex tools Xcelite ECP-112


You wont find this one cheaper if you can find it at all.

Comparable to a $300.00 plus set up at a fraction of the price.

Comes in a blister pack and white box.

may be repackaged for shipping due to the length of the factory packaging.

Ratchet release is on the inside of the handle.




                          You will find the Pressmaster KRB-0560 HERE

Pressmaster KRB-0560

10 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-10 Female     $2.90 each



Sumitomo part number 6098-0249



Applications include


Add to Cart

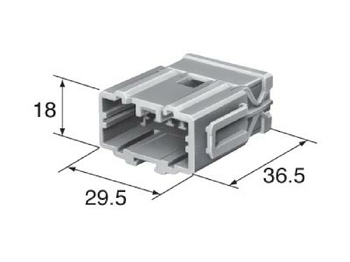

10 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-10 Male       $3.00 each



Sumitomo part number 6098-0250



Applications include


Add to Cart

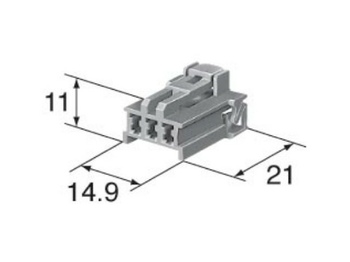

3 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-3  Female   $2.45 each



Sumitomo part number 6098-0241


Applications include

Honda Taillight connector

Honda interior connector

Add to Cart

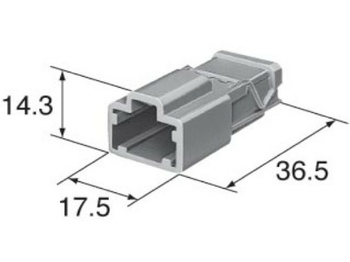

3 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-3   Male      $2.35 each



Sumitomo part number 6098-0242


Add to Cart

Cheap Shipping!!

Minimum $5.00 on all orders

Extra Terminals and Crimp Tool
at bottom of page

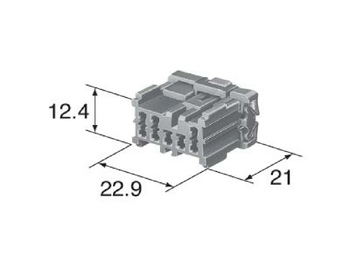

8 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-8  Female   $3.25 each



Sumitomo part number 6098-0247


Add to Cart

8 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-8   Male      $2.75 each



Sumitomo part number 6098-0248


Add to Cart

14 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-14 Female     $3.60 each No Stock!!



Sumitomo part number 6098-0253



Applications include



14 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-14 Male       $3.65 each



Sumitomo part number 6098-0254



Applications include


Add to Cart
Female Terminals for HD-HE 090/187 Hybrid
8100-0606 Japan Sumitomo   8100-1507, 8100-0782


$0.27 each   HD 187  Female




Applicable wire size 0.5-1.25mm2
Cable overall diameter (mm) 1.6-2.9 M
Materials Heat-resistant copper alloy
Surface treatment Tin-plated



For HE -HD series 2.3/4.8mm(090/187) hybrid connectors
Add to Cart
Male Terminals for HD-HE 090/187 Hybrid
8100-0664 Japan Sumitomo   8100-1506, 1500-0166


$0.29 each   HD 187 Male




Applicable wire size
0.5-1.25mm2
Cable overall diameter (mm) 1.6-2.9
Materials Brass Surface treatment Tin-plated



For HE -HD series 2.3/4.8mm(090/187) hybrid connectors
Add to Cart
2.3mm - .090 HD/HM/MT/DS Terminals
4.8mm - .187 HD/HE Terminals

20 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-20 Female     $4.40 each


Sumitomo part number 6098-0259



Applications include


20 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-20 Male       $5.35 each



Sumitomo part number 6098-0260



Applications include


Add to Cart Add to Cart

20 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090/187-14 Female    No Stock


Sumitomo part number 6950-0991



Applications include


pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090/187-14 Male  $6.40 each



Sumitomo part number 6950-0992



Applications include


Add to Cart
HD 090/187 Hybrid Series

12 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-12 Female     $3.90 each



Sumitomo part number 6098-0251



Applications include

Honda RC51 headlight harness

Add to Cart

12 pin HD 090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



    HD 090-12 Male       $3.75 each



Sumitomo part number 6098-0252



Applications include

Honda RC51 headlight harness

Add to Cart

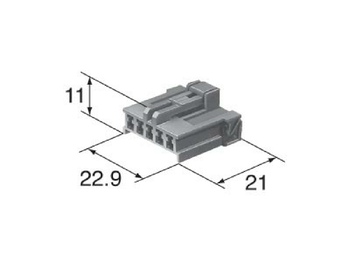

5 pin HD 090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Comes Complete with terminals



     HD 090-5  Female   $2.55 each



Sumitomo part number 6098-0344
