OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HM, MT, HW Type .090 - 2.3mm

Sumitomo - HM Sealed (Mounting Bracket type) - MT Sealed Connector for .090 - 2.3mm Terminal.

These Connector s are used highly on TPS, CAM, CRANK, Sensors, Fuel injectors, for GSXR, CBR, CRF & YZF Models.

All connectors Come complete with male, female terminals and Wire seals.

For wire sizes .6 - 1.3mm (16-22 AWG)

More Terminals, seals, and plugs available at the bottom of the page

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me Here

These are great connectors for Bikes Exposed to water, Dirt, Mud and the elements.

Male HM Type Connector Comes with an inner seal, and seal retainer to keep the seal in place.

Dummy plugs are also available for terminal openings not being used.

Extra Terminals For .090 - 2.3mm Connector Sets

2.3mm - .090 Tin plated

Male Terminal

.6 - 1.3 mm (16-20 AWG)

Locks into housing

$0.18 each

MPT1620 090

2.3mm - .090 Tin Plated

Female Terminal

.6 - 1.3 mm (16-20 AWG)

Locks into housing

High Temp Tin plated Copper

$0.20 each

FPT1620 090

HM/MT Connector

Wire seal 2.3mm - .090

7165-8234

.6 - 1.3 mm (16-20 AWG)

$0.17 each

Wire Seal 090

HM/MT Connector

Cavity Plug 2.3mm - .090

.6 - 1.3 mm (16-20 AWG)

$0.18 each

Plug 090

6 pin HM 090 Male and Female locking connector

All Connectors come complete with Terminals and Seals

Nylon Connector with inner seal, and Wire seals.

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female

Set HM090-6           $5.85 each

4 pin HM 090 Male and Female locking connector

All Connectors come complete with Terminals and Seals

Nylon Connector with inner seal, and Wire seals.

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female

Set HM090-4           $5.25 each

3 pin HM 090 Male and Female locking connector

All Connectors come complete with Terminals and Seals

Nylon Connector with inner seal, and Wire seals.

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female

Set HM090-3           $5.05 each

Speed sensor on GSXR

2 pin HM 090 Male and Female locking connector

All Connectors come complete with Terminals and Seals

Nylon Connector with inner seal, and Wire seals.

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female

Set HM090-2           $4.45 each

2  pin MT .090 - 2.3mm Female locking connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

                                                      Female MT090-2L        $2.99 each

2  pin MT .090 - 2.3mm Female locking connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

                                                      Female MT090-2R        $2.99 each

2  pin MT .090 - 2.3mm Female locking connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

                                    Top Rib      Female MT090-2T        $3.48 each

Denso injector connector

CBR600

CBR1000

Subaru

Toyota                                 There is another connector that looks very similar with a bottom rib

1  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-1    $4.05 each

6 Pin MT 090 Male Connector

Connector comes complete with terminals and wire seals.

Nylon Connector with inner seal, and wire seals.

This connector is nearly identical to the HM 090-6

but is actually in the MT series.

It has no clip on mounting capability.

It is slightly shorter in length, and uses the same female connector as the

HM-090-6 as it mating connector.

Male   MT090-6B     $3.60 each

Does not use Mounting Bracket!!

6  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Used as Suzuki Service Mode Connector

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-6   $8.25 each

2  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG) has 2 Bottom Ribs

Connector Set  Male and Female  - Set MT090-2    $5.35 each

Fits some Yamaha FZ-09 Aux Connectors

2  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-2B    $5.35 each

3  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-3    $5.45 each

3  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-3B   $5.25 each

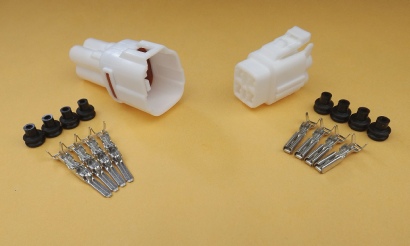

4  pin MT .090 - 2.3mm Male and Female locking connector

Comes with Terminals and seals

Waterproof Connector Housing with Inner Seal, and Wire Seals

Terminals Fit wire size .6 - 1.3 mm (16-22 AWG)

Connector Set  Male and Female  - Set MT090-4   $6.05 each  White

Connector Set  Male and Female  - Set MT090-4   $6.25 each  Black
