OEM Japanese Electrical Wiring  Connector Sumitomo RS E-RS 090 - 91 Series

Sumitomo - RS Sealed 090 Connectors.

All connectors Come complete with male or female terminals and Wire seals.

More Terminals, seals, and plugs available at the bottom of the page.

Sumitomo RS 090 2 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.5-1.25mm2 (20-16 AWG)

Sumitomo part number 6185-0866 Standard Type 1 6918-1774 Genuine Japan

                     Female RS090-2  Brn   $3.55 each

Economy  - Micro Open Barrel Crimp Tool

For   Sumitomo 090 - 040 Terminals, JAE 040, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

This will not do Bullet terminals,110, or 250 standard terminals

                                                          $33.95 each   ECT47

Minimum $5.00 on all orders

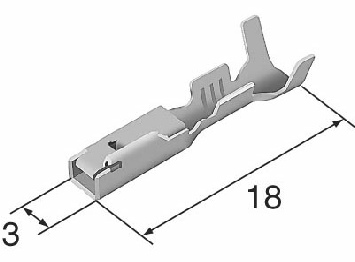

Sumitomo RS 090 (2.3mm) Female Terminal 8240-0264

Terminals Fit wire size  0.85-1.25mm2 (16-18 AWG)

Sumitomo part number 8240-0264 Genuine Japan

                              Female RS090     $0.16 each

Applicable wire size - 0.85-1.25mm2

Materials - Heat-resistant copper alloy

Surface treatment - Tin-plated

Sumitomo RS 090 (2.3mm) Wire Seal 7165-0473

For Cable diameter (mm)  1.35-1.9  (18-22 AWG)

Sumitomo part number 7165-0473

                         RS090  Blue    $0.14 each

Applicable wire size - Cable overall diameter (mm)  1.35-1.9

Materials - Silicone

Sumitomo RS 090 2 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.5-1.25mm2 (20-16 AWG)

Sumitomo part number 6185-0867 Standard Type 1 6918-1774 Genuine Japan

                     Female RS090-2  Gry   $3.50 each

Sumitomo RS 090 3 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.5-1.25mm2 (20-16 AWG)

Sumitomo part number Brown 6189-0780 Black 6189-7711, 6189-1098

Type E-RS 6189-7710 and TPA 6918-1595 Genuine Japan

Part name E03FBR-RS

                   Female E-RS090-3  Brn   $3.50each

Sumitomo RS 090 3 pin Female Connector  - with Terminals and seals

Terminals Fit wire size  0.5-1.25mm2 (20-16 AWG)

Sumitomo part number Gray 6189-0779

Type E-RS 6189-7471 and TPA 6918-1595 Genuine Japan

Part name E03FGY-RS

                  Female E-RS090-3  Gry   $3.85 each

Application:

Nissan Infinity J-48817-102 ignition coil connector

Ford Mazda Suzuki ignition coil connector

Sumitomo RS 090 6 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.5-1.25mm2 (20-16 AWG)

Sumitomo part number 6189-7761 and TPA 6918-1601 Standard Type 2 Japan

                    Female RS090-6  Gray   $4.85 each
