Small Splice Terminal for 3 - 4 wires 18 - 20 awg

Brass, made by AMP

Sold individually

$0.17 each  Splice 4x18

NOTE : Some of these Terminals may  require a special crimp tool, Due to Design and Length.

These are for joining multiple wires in a single crimp.

Use the Sumitube, or DSG Dual wall Adhesive Lined shrink tube to seal the splice crimp,

and provide support for the wiring.

Medium Splice Terminal for 2 - 4  wires 14 - 18 awg

Brass, made by AMP

Sold individually

$0.21 each  Splice 3x16

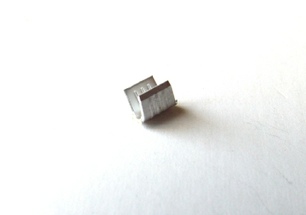

Large Splice Terminal for 3 - 4 wires 12 - 16 awg

Tin Plated brass, made by AMP

Sold individually

$0.23 each  Splice 3x14

Very Small Splice Terminal for 2 - 4 wires 20 - 24 awg

Plain Brass, made by AMP

Sold individually

$0.16 each  Splice 3x22

Crimp tool for Open Barrel Splice and Ring Terminals - Eclipse Brand

Thumb Screw for quick changing of Dies.

Compact size, Comfort Grip Handles.

The Die I have available to be used for splice terminals is an optional die and does not come with the frame.



Optional dies are available for closed barrel, and open barrel pin terminals.

For Help using crimp tools check out this link

        Dies sets for this tool frame can be found here!
