Cycle Terminal

OEM Delphi Metripack 150.2  Pull to Seat Sealed Connectors

If you have any Questions, please feel free to Email me Here

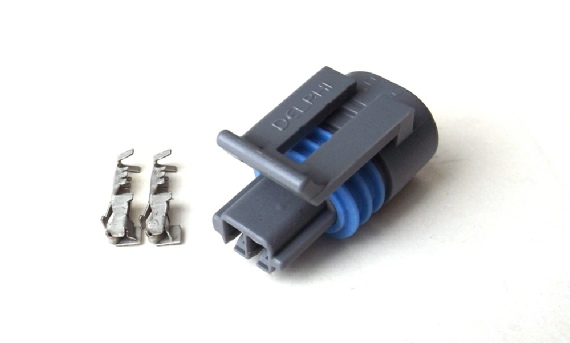

Metripack 150.2 Gray 2 pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12162197

Comes complete with terminals and backside seal for 20-24 gauge wire

              MP150.2-2 GRY     $2.85 each

Common Application:
GM/Chevy intake air temperature (IAT) sensors
1985-97 GM/Chevy IAT sensor

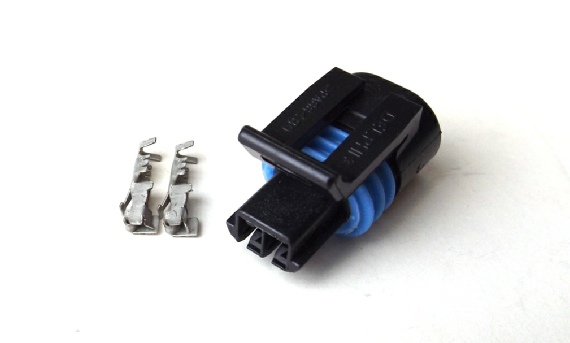

Metripack 150.2 Black 2 pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12162193

Comes complete with terminals and backside seal for 20-24 gauge wire

             MP150.2-2 BLK       $2.65each

Common Application:
GM/Chevy

Engine Coolant Temperature Sensor connector ECT 93-97 LT1 LT4 Camaro Corvette

Vehicle Speed Sensor connector (VSS) 93-02 LT1  LS1 w/6 Speed Manual Transmission

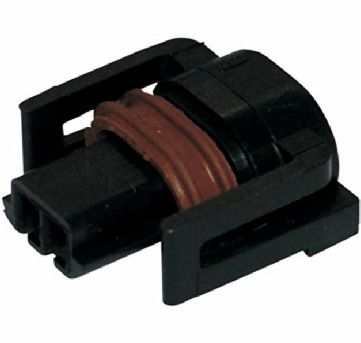

Metripack 150.2 2 pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12162215

Comes complete with terminal and backside seal for 20-24 gauge wire

             MP150.2-2 IAT      $1.85 each

Common Application:

Harley Davidson Intake Air temp sensor

Ducati Intake air temperature sensor
Magneti Marelli ATS05 Intake air temp sensor

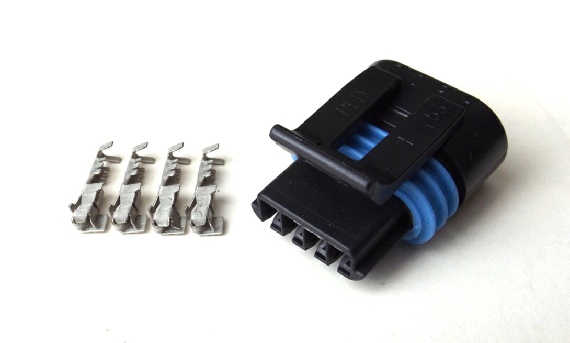

Metripack 150.2 4 pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12162188

Comes complete with terminals and backside seal for 20-24 gauge wire

                    MP150.2-4      $3.80 each

Common Application:
GM /Chevy distributor on TBI/TPI
GM/Chevy ignition coil module on 93-97 LT1
GM/Chevy Idle Air Control Valve IAC Motor Connector 94-02 LT1 LT4 LS1
GM/Chevy ignition coil on 4.8, 5.3, 6.0L
Ducati Idle air valve
Ducati air pressure/temperature sensor - pre2005

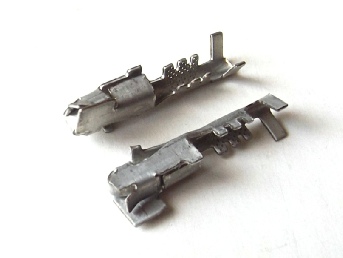

Delphi Metripack 150.2 pull to seat

Female Terminal

Delphi (Aptive) part # 12124076

For wire sizes (20 - 24 AWG)

     $0.30 each

Economy  - Micro Open Barrel Crimp Tool

for GT-150,  090, 070, 040 sized terminals Made in USA by Rostra

Metri-pack GT150. Sumitomo 090  - 040, JAE 040, Molex MX150, AMP Multi-lock 070 Terminals, Insulation and Wire Seal 16 - 30 AWG

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

These will not do Bullet terminals, or 110, 250 standard terminals

                                                          $33.95 each   ECT47

Delphi Metripack 150.2 pull to seat Connectors.

Highly used in high performance sensor applications, Harely Davidson, GM/Chevy, Ducati, MV Agusta, Moto Guzzi, Magneti Marelli, AEM ECM/ECU,  and many others.

Great prices and low cost shipping!

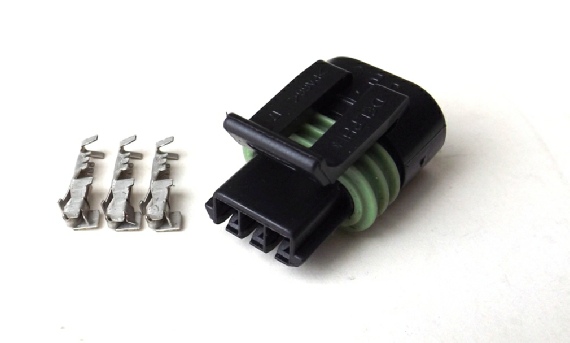

Metripack 150.2 3 pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12162182

Comes complete with terminal and backside seal for 20-24 gauge wire

                    MP150.2-3      $4.45 each

Common Application:
Ducati TPS, on ST2, 748, 996, 998, Monster

(Magneti Marelli PF1C, PF3C or CTS 175 sensor)
MV Agusta TPS
Moto Guzzi TPS

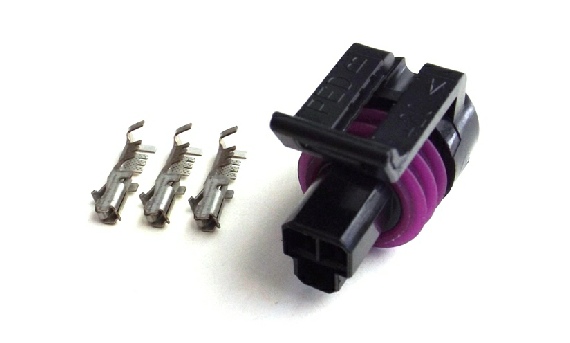

Metripack 150.2 # pin Female Connector

Terminals Fit wire sizes (20-24 AWG)

Delphi p/n: 12065287

Comes complete with terminals and backside seal for 20-24 gauge wire

              MP150-3B     $4.05 each

Common Application:
GM/Chevy TPS/Throttle position sensor connector

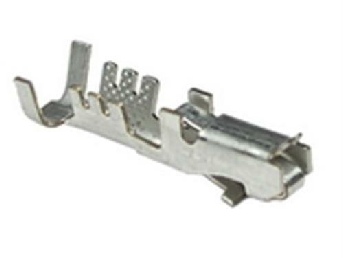

Delphi Metripack 150 pull to seat

Female Terminal

Delphi (Aptive) part # 12103881

For wire sizes (18 - 20 AWG)

     $0.32 each
