OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HX - .090

Sumitomo - HX Sealed 090 Connectors are used for components like purge control valves, duty cycle solenoids, ignition coils, distributor, fuel injectors, IAC motors, alternator and fuel pumps, on many makes and models including Honda, Acura, Toyota, Suzuki, and Kawasaki.

All connectors come complete with male/female terminals and wire seal.

Extra terminal, seal, and plugs available at the bottom of the page.

2 pin HX .090  Female Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Sumitomo part number 6189-0552 6918-1260 - Genuine Japan

                           Female HX090-2     $3.75 each

Applications include

Fuel Tank/Pump Sending Unit Connector

Honda Linear Control Valve Connector

2 pin HX .090  Female Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Sumitomo part number 6189-0593 6918-1260 - Genuine Japan

                           Female HX090-2B    $5.95 each

Applications include

Fuel Tank/Pump Sending Unit Connector

Honda Linear Control Valve Connector

1 pin HX .090  Female Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Sumitomo part number 6189-0591 6918-1370 - Genuine Japan

                            Female HX090-1     $3.95 each

Used as Late Model Honda/Acura Car Horn Connector

3 pin HX .090  Female Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Sumitomo part number 6189-0596 6918-1371 - Genuine Japan

                             Female HX090-3    $4.95 each

Applications include

Kawasaki Tail light connector

Honda TRX 450 Tail Light Connector

2 pin HX .090  Female Connector - with Terminals, seals, and retainer

Terminals Fit wire size .5 - .85 mm (18-22 AWG)

Sumitomo part number 6189-0553 - Genuine Japan

                            Female HX090-2 FI   $3.95 each

Application - Honda NH-1

Various Honda and Acura Fuel injectors

Suzuki GSXR

2 pin HX .090  Male Connector - with Terminals, and seals

Terminals Fit wire size .5 - .85 mm (18-22 AWG)

Custom manufactured male housing for the above Female connector

Tough waterproof housing with inner seal, and a seal for each wire.

                             Male HX090-2  FI     $3.25 each

Application - Honda NH-1

Various Honda and Acura Fuel injectors

Suzuki GSXR

Economy  - Micro Open Barrel Crimp Tool

For   Sumitomo 090 - 040 Terminals, JAE 040, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

This will not do Bullet terminals,110, or 250 standard terminals

                                                          $35.95 each   ECT47

3 pin HX .090  Female Connector - with Terminals, seals, and retainer

Terminals Fit wire size .5 - .85 mm (18-22 AWG)

Sumitomo part number 6189-0728 -  Genuine - Japan

                        Female HX090-3 COP   $5.65 each

Honda/Acura K-series and F-series Ignition Coil on plug COP connectors

3 pin HX .090  Female IAC Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Genuine - Japan

                       Female HX090-3 IAC   $7.95 each NO STOCK!!

                                                          Use MT090-3E

Applications include

Honda IAC - Idle air control valve connector

3 pin HX .090  Female Denso Alternator Connector

with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Genuine - Japan

                        Female HX090-3 ALT   $7.95 each NO STOCK!!

   You can also use TS090-3B

Applications include

Acura Integra

Toyota

Jaguar

Suzuki

Minimum $5.00 on all orders

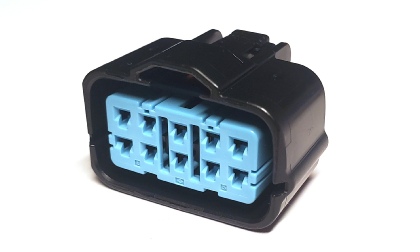

10 pin HX 2.3/4.8mm (090/187) Hybrid  Female Connector

Complete with Terminals, seals, and retainer

Sumitomo part number 6189-0555 and retainer 6918-1267 -  Genuine - Japan

Part Name HX9-8+2FAY-DGR

                             Female HX090-10    $7.95 each

 2 x 187 Male Terminal 8100-0464   0.5-1.25mm2

 2 x 187 Brown seal 7165-0347

 8 x 090 Male Terminal 8230-4562    0.5-0.85mm2

 8 x 090 Blue seal 7165-0118

Honda/Acura B series OBDII Ignition system/distributor connector

10 pin HX 2.3/4.8mm (090/187) Hybrid  Male Connector

Complete with Terminals, seals, and retainer

Sumitomo part number 6181-0381 and retainer 6918-1263 -  Genuine - Japan

Part Name HX9-8+2M-DGR2

                                Male HX090-10    $7.65 each

 2 x 187 Male Terminal 8100-0464   0.5-1.25mm2

 2 x 187 Brown seal 7165-0347

 8 x 090 Male Terminal 8230-4562    0.5-0.85mm2

 8 x 090 Blue seal 7165-0118

Honda/Acura B series OBDII Ignition coil/distributor connector

5 pin HX .090  Female Connector - with Terminals, seals, and retainer

Terminals Fit wire size .5 - .85 mm (18-22 AWG)

Japan

                        Female HX090-5 FP   $6.75 each

Honda S2000/Accord Fuel pump connector

TS .187 Female Terminal

Sumitomo Part Number:  8100-0467

Made in Japan

Compatible with HX Hybrid

Applicable wire size 0.5-1.25mm2 (16-20 AWG)

Material - Brass

Surface treatment  - Tin-plated

  $0.20  each TS 187 Female

HX/TS/DL  .187Male Terminal

Sumitomo Part Number:  8232-4220

Made in Japan

Applicable wire size 0.5-1.25mm2 (16-20 AWG)

Material - Brass

Surface treatment  - Tin-plated

       $0.25 each HX 187 Male

TS/DL 187 Wire Seal

Sumitomo Part Number:  7165-0347

Made in Japan

$0.25 each HX 187 Seal Dk Grn

Cable/Wire overall diameter (mm) 2.0-2.9

Materials Silicone Color

Dark Green

1 pin HX .090  Male Connector - with Terminals and seals

Terminals Fit wire size .6 - 1.3 mm (18-22 AWG)

Sumitomo part number 6181-0803 6918-2665 - Genuine Japan

                              Male HX090-1     $10.30 each

Used as Late Model Honda/Acura Car Horn Connector
