Cycle Terminal

OEM Style - Motorcycle Electrical Connectors - AMP 1.5 Superseal Series

Female Terminal

16 - 22 awg (.5 - 1.25mm)

1 pin Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282103-1 and 282079-2

Ducati oil pressure switch connector

Male Terminal

16 - 22 awg (.5 - 1.25mm)

Extra Wire Seal

16 - 22 awg (.5 - 1.25mm)

Blank Cavity plug

This is Not a wire Seal

Economy  - Micro Open Barrel Crimp Tool

For Amp Superseal and SSC 070 - 040 Terminals, Insulation crimp and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

These will not do Bullet terminals, or 110, 250 standard terminals

                                                          $33.95 each   ECT47

2 pin 1.5 Superseal Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282104-1 and 282080-1

Ducati cooling fan connector

3 pin 1.5 Superseal Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282105-1 and 282087-1

Ducati wheel-speed sensor,

diagnostic connector, side-stand switch connector

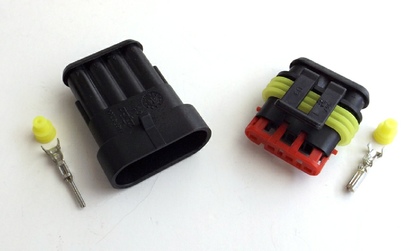

4 pin 1.5 Superseal Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282106-1 and 282088-1

Ducati fuel pump/sending unit connector

5 pin 1.5 Superseal Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282107-1 and 282089-1

6 pin 1.5 Superseal Connectors

16 - 22 awg (.5 - 1.25mm)

Comes complete with housing, terminals, and wire seals.

TE/Amp part number 282108-1 and 282090-1

AMP 1.5 Superseal Connectors, Very common connector throughout the industry.

Commonly found on Ducati, Aprilia, BMW!!

AMP 1.5 Superseal Kit Contains

Male Connectors included

2 x 6 pin male housing

3 x 5 pin male housing

3 x 4 pin male housing

3 x 3 pin male housing

4 x 2 pin male housing

3 x 1 pin male housing

Female Connectors included

2 x 6 pin female housing

3 x 5 pin female housing

3 x 4 pin female housing

3 x 3 pin female housing

4 x 2 pin female housing

3 x 1 pin female housing

Terminals and Seals included

65 male terminals for 16-20 gauge wire

65 female terminals for 16-20 gauge wire

110 wire seals for 16-20 gauge wire

12 dummy plugs

1 x Case

                      1.5 SS Kit

                      $87.75 Each

2 pin 1.5 Superseal Boot

TE Amp part number 880810-1
